MagStor 1U LTO7 Thunderbolt 3 Rackmount Drive RM LTO-7 TAA

Details

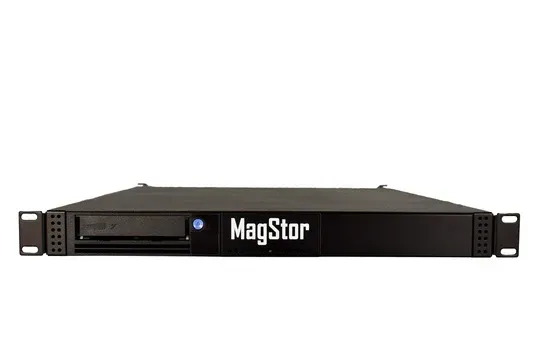

The MagStor TRB3-1U-HL7 1U Rackmount (RM) unit features one or two LTO7 (HH) Half Height tape drives connected via a Thunderbolt™ 3 / USB-C port as a convenient connection to your desktop MAC or PC computer.

Thunderbolt™ 3 devices are fully backward compatible with previous generations of Thunderbolt™ technology. We recommend the Apple MMEL2AM/A adapter with those using older Thunderbolt™ ports.

Features

• 1x 6TB LTO7 (HH) Half-Height Tape Drive
• Add 2nd drive for TRB3-1U-HL7-DUAL configuration
• 300 MB/s Read/Write Speeds
• 30 Year LTO Media Archive Life
• Standard 1U 19"" RM
• 2x Thunderbolt™ 3 Ports
• 2x SFF-8644 SAS ports to daisy chain up to four SAS external devices
• TAA Compliant (drives are made in Japan)
• 3 Year Warranty (Upgrade to 5 Years US/CAN)
• Apple™ Certified
• Intel™ Certified

Technical Specifications

Interface:

Two Thunderbolt™ 3 40 Gb/s interface ports allow connection to a MAC or PC with a Thunderbolt™ 3 compatible USB-C Port.

Speed:

LTO7 (HH) Half Height Tape drive with up to 300 MB/sec native transfer rate per drive

Data Cartridge:

• Read/Write LTO7 data cartridge; 6TB native storage capacity
• Read/Write LTO6 data cartridge; 2.5TB native storage capacity
• Read Only LTO5 data cartridge; 1.5TB native storage capacity

Power Supply:

100/240 VAC 50/60 Hz, 300W GOLD Rated auto switching

Dimensions & Weight:

• 33 x 23 x 11 inches (L x H x W) / 24 lbs
• Physical Dimensions: 431mm W x 476mm D

Software Compatibility:

• Hedge Canister (Included)
• IperiusBackup
• myLTO
• PreRollPost
• Retrospect
• StorageDNA
• Third-Party TAR based backup software, Acronis etc.
• Veeam
• YoYotta LTFS

Supported Operating Systems :

• MAC OSX 10.12 or higher
• Intel or M1, M2 CPU
• Windows 10, 11

MagStor TRB3-1U-HL7 includes:

• MagStor Single LTO7 HH Tape Drive in 1U Rackmount Thunderbolt-3 Enclosure
• Rack Mounting Kit
• Regional Power Cord
• One 2 Meter MagStor (Intel Certified) Thunderbolt™ 3 Active 40 Gb/s cable
